PROFILE RAIL GUIDES

Profile Rail Guides

Profile rail guides are designed for linear movement and combine rails and carriages according to the customer application. As the balls within the carriages are recirculating continuously, profile rail guides offer a virtually unlimited stroke.

We carry a comprehensive range of all major brands. ​Rails can be cut and or machined to your requirements.

Australia's largest stocks across many brands, Rexroth, THK, SKF, PMI, WON.

  • High speed

  • High temperature

  • Caged roller or uncaged.

  • Stainless Steel types available

  • Long service life

  • Maintenance free operation

  • Suitable for all XY structures

  • Heavy loads

  • High rigidity

  • Low noise

  • Smooth motion

Product Specifications

MSA E & LE (PDF)

MSA S & LS (PDF)

MSB E & TE (PDF)

MSB S & TS (PDF)

WON H-F Ball Rail (PDF)

WON H-R Ball Rail (PDF)

PMI Miniature (PDF)

REXROTH Guide Rails (PDF)

THK Rails & Block LM Guide (PDF)

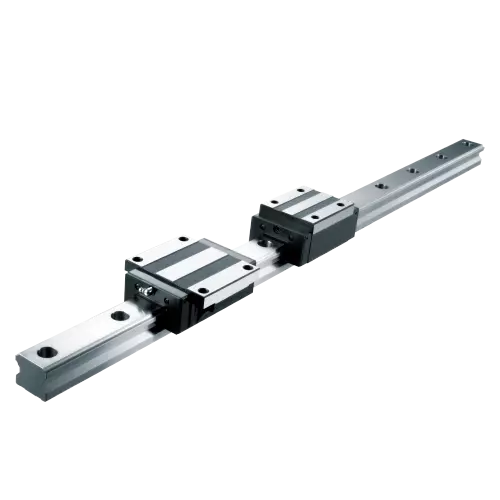

Profile Rail Guides
profilerailguide2
profilerailguide2

press to zoom
profilerailguide2
profilerailguide2

press to zoom
1/1
